IQ Cable 2.5mm2 Length 1.3m for 1 Phase (Q-25-10-240)
฿650.00
2.5mm2 Q cable for 60/72 cell 1.0m potrait module pitch. Conncector pitch is 1.3m. 2 cores.
Out of stock

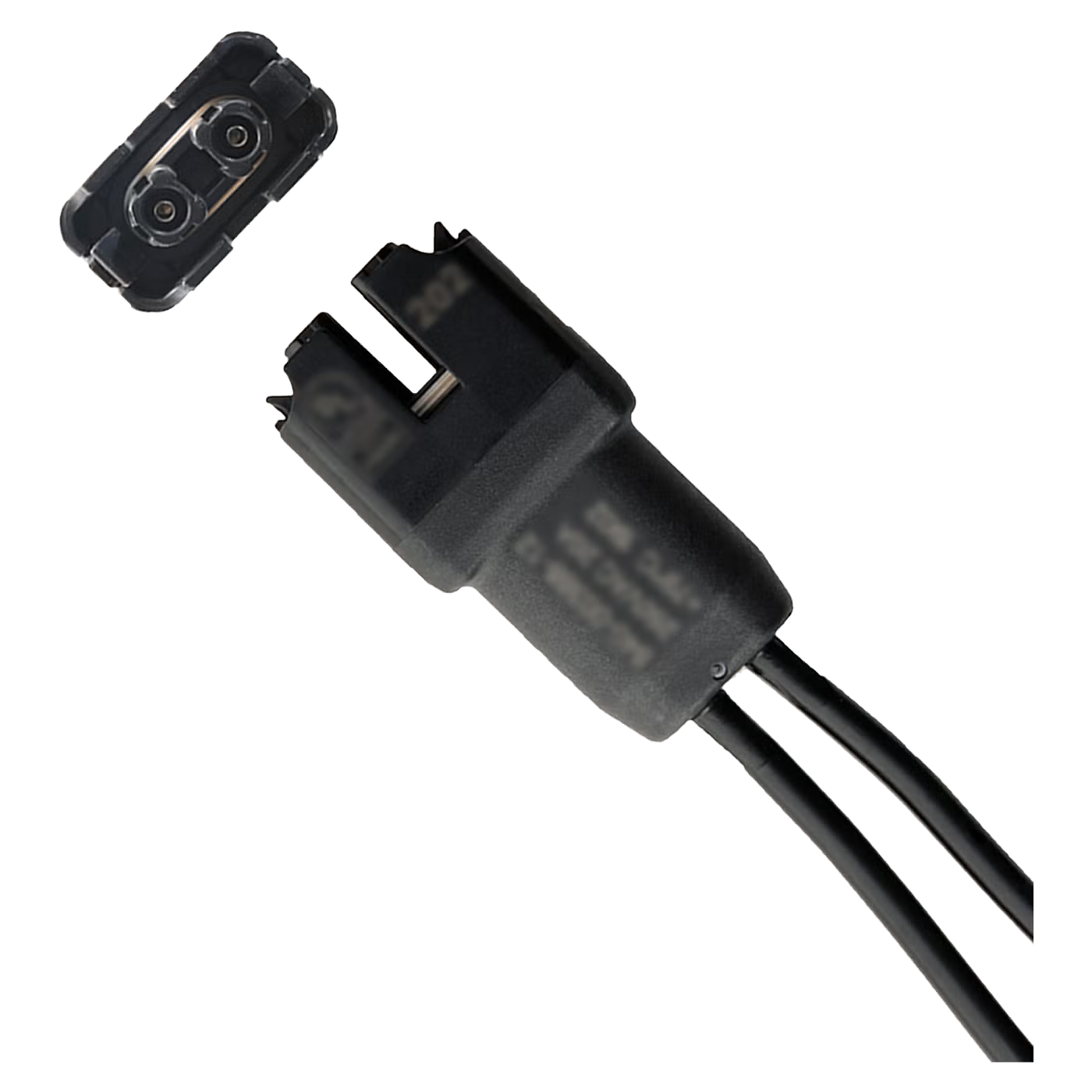

The IQ Cable is a continuous length 2.5 mm2 cable with pre-installed connectors for IQ Microinverters that support faster, simpler, and more reliable installations. The cable is handled like standard outdoor-rated electrical wire, allowing it to be cut, spliced, and extended as needed. It is rated for 250 VAC and PV modules rated power less 550 watt.
- Voltage rating: 230 V (connector rating 250 V)
- Current rating: 25 A
- Connector spacing: 1.3 m
- Temperature rating: 90°C dry/wet
- Cable insulator rating: IEC 60529, IP67
- Flame test rating: IEC 60332-1-2
- Compliance: RoHS, OIL RES I, CE, UV resistant
- Connector spacing: 1300 mm
- Diameter: 2.5 mm2
- Weight: 0.27 kg
- IQ Microinverters
- IQ Cable
